Switching current: 3mA - 6A
Nominal coil power: 270mW
Test voltage (rms): 5000V
Switching current: 3mA - 6A
Nominal coil power: 600mW
Test voltage (rms): 4000V
The following product variants are available:
Other relay coil variants on request.
Maximum one packing unit available, contains 35 pieces.

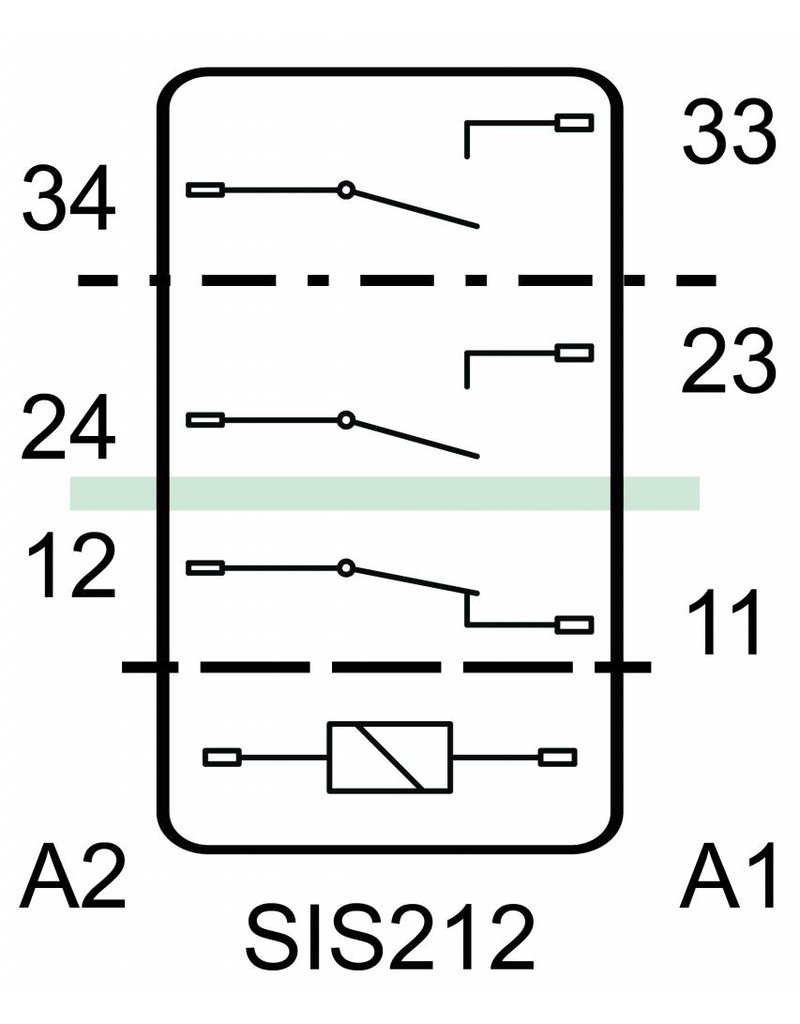

| Number of Contacts NO: | 2 |
| Number of Contacts NC: | 1 |
| Contact Material: | AgCuNi |
| Contact Type (Output Contacts): | Single contact with notched crown |
| Nominal Coil Power: | 0.6 W |
| Switching Current Range: | 3 mA to 6 A |
| Test Voltage open Contact (rms): | 1500 V |
| Test Voltage between Contacts (rms): | 4000 V |
| Test Voltage Coil/Contact (rms): | 2500 V |
| Length in mm: | 29.2 |
| Width in mm: | 16.6 |
| Height in mm: | 16.5 |
| Type of Protection: | RT III |
| Approvals: | UL, cUL, TÜV |
| Options, Accessories: | DIN rail socket SRD-SIS3 |
| Areas of Application: | medical technology, sensors, interfaces, transportation, motion control, door control |
